Factory Price 4G/2g Smart Life Intrusion WiFi Touch Anti

Overview

Basic Info.

Model NO.	ZDAS-F5-A
Transmission Mode	Wireless
Alarm Volume (within 1m)	≥110dB
Receive Frequency	433.92MHz
Coding Methord	Learning Code
Alarm Volume	Internal :45dB, External Siren: 110~120 dB
Panel LCD	4.3" TFT Full Touch Screen
Backup Battery	3.7V, 1000mA Built-in Li-ion
Multi-Language Menu/Operation Tone Guide	Yes
Touch Screen Panel	4.3"
Support Wireless Siren	Yes
Entry Delay, Exit Delay	Yes
Protection Zone	99 Wireless Zones
APP Control	Ios & Android
Wireless Frequency	315MHz/433MHz
Alarm Phone	5 Phone/SMS Alarm Numbers
GSM Network	3G/4G SIM Card
WiFi Network	2.4GHz Wi-Fi Network
GSM Frequency	GSM850/900/1800/1900MHz
Transport Package	Color Box
Specification	CE, RoHS
Trademark	ZUDSEC
Origin	Shenzhen, China
HS Code	85319010
Production Capacity	1000000PCS/Year

Product Description

Product Description

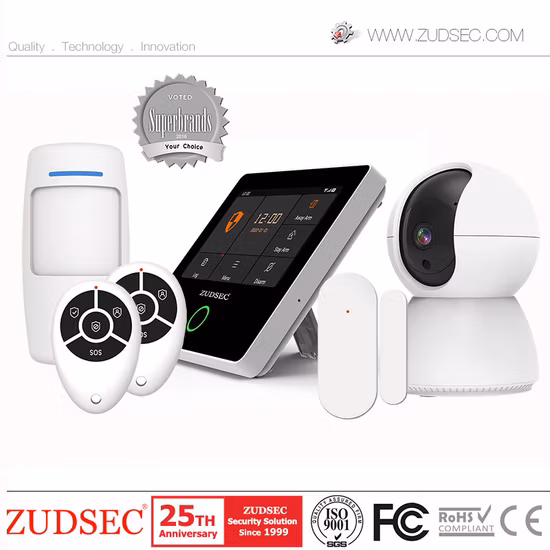

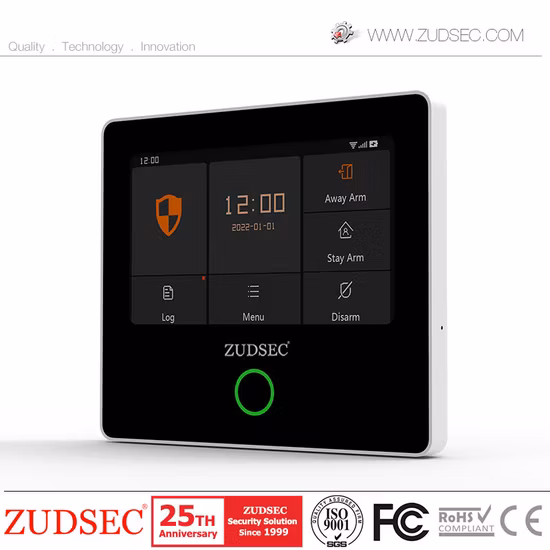

WiFi /GSM Smart Home Alarm System: ZUDSEC ZDAS-F5 is a 4.3" TFT Color full touch screen panel which supports GSM+WiFi Dual Network Technology; With SMS & WiFi Push notification, Two-Way intercom, Operation tone guide, RFID tags, Exit & Entry delay, Zone Setting, and 90 Wireless Zones+ 4 Wired Zones;, Support IOS & Android APP control; Have a built-in siren, big SOS button & rechargeable battery.

ZDAS-F5 WiFi+GSM design enables the sysem to continue working even internet is out of service, system will automatically call, or send SMS & Push notification via APP once an alarm triggered.
-Optional 4G model: ZDAS-F5-4G
Features
- GSM wireless network + WiFi network, double netwrok protection make sure your home more safe.
- 4.3" TFT Full Touch screen panel, RFID tags, Slim panel with large SOS button & Bule back-up light.
- Multi-Language menu/Operation tone guide.
- Support iOS & Android APP control with push notification
- Support 99 wireless zones + 4 Wired Zones + 10 remote controls;
- Intelligent door sensor with Open/Close signal;
- Automatically dial 5 phone/SMS alarm numbers when danger;
- Advanced zone attribute, user-friendely zone name, every zone type can be seperately programmed.
- Entry delay, exit delay
- Support wireless siren.
- Built-in Li-lon backup battery can work for 2 hours in case of no electricity supply, it will alert when low power or external power failure/ recover.
Product Parameters

Alarm communications: Transmitting alarming signal by GSM dialing and Wifi network

Support GSM frequency: GSM850/900/1800/1900MHZ (Quad-Band) applicable for universal. Wireless frequency: Available in 315MHz/433MHzProtection zone: 99 wireless zonesWorking power voltage: Input: AC 110~220V 50-60Hz; Output: DC12V /1AStatic current: <200mA; Alarm current: <120mA;Built-in Li-ion backup battery: 3.7V,1000mA,Coding type: learning codeWireless receiving distance in open place: >200m, indoor: 30~50m, (depend on the surrounding environment and wireless interference)Alarm volume: internal :45dB, external siren: 110~120 dBCommunication protocol: Ademco Contact IDWorking temperature: -20 ~ 55°C ; Working Humidity: 40 ~80%Packing box: 19*18*9.2cm Weight: 1.5kg / kitSmart WiFi Wireless Touch Burglar Home Security GSM Alarm with APP Control:
